1. TV Camera Adapter / Optical Fiber
Illuminator
(1) Model :
TVA-45
 TV Camera
Adapter Available for C-mount CCD Camera
(2) Model : MegaLight
100
100W Optical Fiber
Illuminator
Available
light guides
- Right Type (FGR8F1000D55RN-SA)
- Branch
Type (LFG6S500-SA)
- Single Type (FGS6S500-SA)
|
|
2. Microscope
Camera Adapter & T-mount Adapters |
| |
 |
 |
(1) Model :
BW 10 x
PHOTO EYEPIECE
BW10 x with photo
ring
(2) Model :
T-MICRO
MICROSCOPE CAMERA
ADAPTER to be used with
T-MOUNT ADAPTER |
|
|
|
|
 |
(3) T-MOUNT ADAPTER
Available mounts
:
T-PENTAX/S
: T-PENTAX/K
: T-NIKON/F
: T-MINOLTA/SR
:
T-MINOLTA/A
: T-CANON/F
: T-CANON/EOS
:
T-OLYMPUS/OM
: T- KONICA
: T- FUJICA
:
T-CONTAX |
|
|
3. OPTIONAL
ACCESSORIES & COMPONENTS |
| |

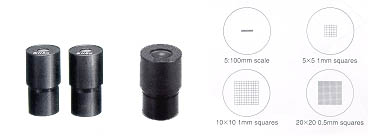

(1) Eyepieces
Lense
1) Model SW5
x (For NSZ & SCW) F.N. 22.5
- Model : SW5 x Z (For SCZ) F.N.
20
2) Eyepiece SW10x (F.N. 23)
- with 5 : 100mm scale (model SW
10x5/100)
- with 5x5 1mm squares (model SW 10 x H10 / 10)
- with 10
x 10 1mm squares (model SW 10 x H10 / 10)
- with 20 x 20.0.5mm squares
(model SW 10 x H10 / 20)
3) Focusing
Eyepiece FSW 10 x (F.N. 20)
Diopter adjustment is provided to focus a
scale.
- with 10 : 100mm scale (model FSW 10 x 10/100)
- with 5 : 100mm
scale (model FSW 10 x 5 / 100)
- with 20 x 20 0.5mm squares (model FSW 10 x
H10/20)
- with 10 x 10 1mm squares (model FSW 10 x H10/10)
- with 5 x 5
1mm squares (model FSW 10 x H5/5)
- with 10:100mm scale with cross line
(model FSW 10 x cross) |
|
4. Auxiliary
Objective Lense for NSZ & SCZ |
| |
(1) Model :
NSAL 0.5X
- By using 0.5x, the magnification is decreased while the W.D.
is extended.
(2) Model : NSAL 1.6X
- By using 1.6x, the
magnification is increased while the W.D. is shortened.
(3) Model : 54M -
4910
- 2.0x
* Remarks : Auxiliary objective lenses are not
available for NSZ-44L, NSZ-44T, & NSZT-44T |
| |
 Specification |
| |
OPTICAL DATA
|
Eyepiece |
SW5x
(F.N. 22.5) |
SW10x
(F.N. 23) |
SW15x
(F.N. 15) |
SW20x
(F.N.
11.4) |
|
Auxiliary
Lens |
Nill |
W/0.5 |
W/1.6 |
Nil |
W/0.5 |
W/1.6 |
Nil |
W/0.5 |
W/1.6 |
Nil |
W/0.5 |
W/1.6 |
|
Magnifi
-cations |
5
-22 |
2.5
-11 |
8
-35.2 |
10
-44 |
5
-22 |
16
-70.4 |
15
-66 |
7.5
-33 |
24
-105.6 |
20
-88 |
10
-44 |
32
-140.8 |
|
Working Distance |
90 |
150 |
45 |
90 |
150 |
45 |
90 |
150 |
45 |
90 |
150 |
45 |
|
Field of view |
22.5
-5.1 |
45.0
-10.2 |
14.0
-3.1 |
23.0
-5.2 |
46.0
-10.4 |
14.3
-3.2 |
15.0
-3.4 |
30.0
-6.8 |
9.3
-2.1 |
11.4
-2.5 |
22.8
-5.1 |
7.1
-1.6 |
|
Eyepiece |
SW5x
(F.N.
20.0) |
SW10x
(F.N.
20) |
SW15x
(F.N.
15) |
SW20x
(F.N.
11.4) |
|
Auxiliary
Lens |
Nill |
W/0.5 |
W/2.0 |
Nil |
W/0.5 |
W/2.0 |
Nil |
W/0.5 |
W/2.0 |
Nil |
W/0.5 |
W/2.0 |
|
Magnifi
-cations |
4
-20 |
2
-10 |
8
-40 |
8
-40 |
4
-20 |
16
-80 |
12
-60 |
6
-30 |
24
-120 |
16
-80 |
8
-40 |
32
-160 |
|
Working Distance |
100 |
185 |
37.7 |
100 |
185 |
37.7 |
100 |
185 |
37.7 |
100 |
185 |
37.7 |
|
Field of view |
22.5
-5.1 |
45.0
-10.2 |
14.0
-3.1 |
23.0
-5.2 |
46.0
-10.4 |
14.3
-3.2 |
15.0
-3.4 |
30.0
-6.8 |
9.3
-2.1 |
11.4
-2.5 |
22.8
-5.1 |
7.1
-1.6 |
|
