●경제적인 가격,소형이며 무게가 가벼워 휴대하기 편리하고,원 버튼 동작으로 조작이 간편함 ●넓은 LCD 화면으로
사용자가 데이터 읽기가 쉬움 ●장시간 사용할 수 있는 리튬 배터리 탑재 ●Visual, Sound, Vibration 의 3가지
경보모드 동시 작동 ●RFI 간섭현상 제거

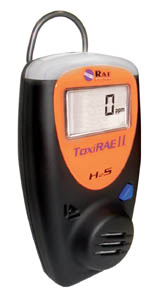

Model
ToxiRAE
II
Sensor
Gas
Range(ppm)
Resolution(ppm)
Oxygen (O2)
0-30%
0.1%
Ammonia (NH3)
0-50
1
Carbon Monoxide (CO)
0-500
1
Carbon Monoxide (CO)
0-1999
10
Chlorine (Cl2)
0-10
0.1
Chlorine Dioxide (ClO2)
0-1
0.01
Hydrogen Cyanide (HCN)
0-100
1
Hydrogen Sulfide (H2S)
0-100
1
Nitric Oxide (NO)
0-250
1
Nitrogen Dioxide (NO2)
0-20
0.1
Phosphine (PH3)
0-5
0.01
Sulfur Dioxide (SO2)
0-20
0.1
Size
3.6” (9.3 cm) x 1.9” (4.9 cm) x 0.9” (2.2
cm)
Weight
3.6 oz (102 g) with clip
Battery
User-replaceable 2/3 AA high-capacity Lithium
battery
Operation Period
Typical battery life is 2 years or 730 minutes of alarm
for CO and H2S sensors One year typical life or 360 minutes of alarm for all
other sensors
Alarms
90 dB at 10 cm
Calibration
Two point field calibration: auto-zero at startup, user
intiated span /standard reference gas
Hazardous Area Approval
UL/CL Classified for use in Class 1, Division II,
Groups A,B,C, and D.
Class 2 Groups E, F, G Hazardous Locations, Temp Code
T3C
Warranty
2 years for instrument and CO, O2 and H2s
sensors
1 year for instrument. battery and all other
sensors
대기/가스관련기기
단일가스(산소
외)
측정기
