이화학기기/과학기기광학기기도립형 현미경TC5000 Series

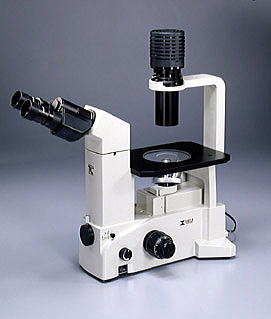

TC5100

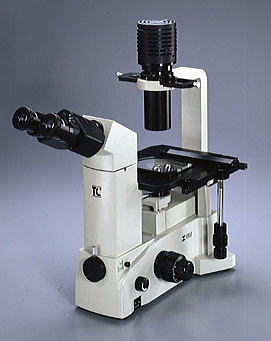

TC5300

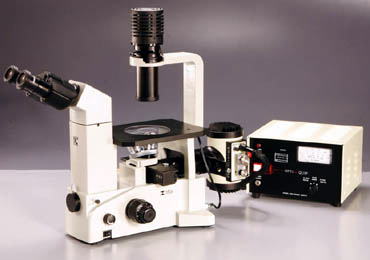

TC5500

TC5000 Series



● 무한원보정 광학계의 채용, 엄선된 재질, 최고 제조 기술의 사용으로 완성된 톱 레벨 렌즈 광학부품      이 사용되었습니다.
 ● 분해능력, 콘트래스트, Brightness, 시야수 등에서 우수한 상태로 검사, 관찰이 가능합니다.
 ● 5000 Series는 밝은 시야(명시야), 위상차 형광의 3가지 기본기능 및 부가적으로 풍부한 OPTION
    부속품의 사용이 가능합니다.


● 연구개발, 임상의학, 학교교육등의 분야
● 조직배양 관찰, 생체 세포의 관찰, 체외수정, 바이러스의 형광관찰이나 침전물 등의 침전물 등의 일상     검사 등에 적합합니다.



MODEL

TC5100

TC5200

TC5300

TC5400

TC5500

TC5600

총배율
40X-400×

대안렌즈
SWH10×(2개) 시야수22

대물렌즈
TC플랜 대물렌즈
*4×NA0.13
　10×NA0.25
　20×NA0.40
*40×NA0.65

Head

쌍안

삼안

쌍안

삼안

쌍안

삼안

Condenser
N.A.　0.30　W.D.　73㎜/   *N.A.　0.55 W.D 20.5㎜

Mechanical Stage

유리 플레이트(교환 가능한 직경 45㎜) 각형 스테이지　160㎜×245㎜

조명장치
6V30W　할로겐에 의한 칼러 조명
100 W형광 조명 장치
*는 옵션

 TC Series Brightfield and Phase Contrast Models

Model

Head

 Illumination

Eyepieces

Objectives

Stage

Condenser

TC5100 Brightfield

Bino.

 Koehler w/o iris 6V 30W halogen

SWH10X
FN22

Quintuple Nosepiece w/LWD 10X &
LWD 20X

Plain Fixed Stage
180mm X 247mm

Focusable
ELWD 73mm
N.A. 0.30

TC5200 Brightfield

Trino.

TC5300 Phase Contrast

Bino.

 Koehler w/o iris
with phase slider 6V 30W halogen

Quintuple Nosepiece
LWD TCPlan Ph10X
LWD TCPlan Ph20X

TC5400 Phase Contrast

Trino.



 TC Series Epi-Fluorescent Inverted Models

Model

Head

Illumination

Eyepieces

Objectives

Stage

Condenser

TC5500

Bino.

100W Mercury + Koehler w/o iris   6V 30W halogen

SWH10X FN22

Quintuple Nosepiece
TC Planachromat
F10X, F20X

Plain Fixed Stage
180mm X 247mm

Focusable ELWD 73mm
N.A. 0.30

TC5600

Trino.

* Centering telescope is included with models TC-5300, TC-5400, TC-5500 & TC5600.

 TC Series Components & Accessories

Eyepieces

Part Number

 Description
MA817 SWH10X Super Widefield High Eyepoint eyepiece, FN22 (standard) (accepts 25mm reticle)
MA818 SWH15X  Super Widefield High Eyepoint eyepiece, FN16 (optional) (accepts 19mm reticle)
MA819 SWH20X  Super Widefield High Eyepoint eyepiece, FN12 (optional) (accepts 19mm reticle)
MA859 SWH10X-F Super Widefield High Eyepoint focusing, FN22 (optional) (accepts 25mm reticle)

Brightfield Objectives - Planachromat - Infinity Corrected - F = 200mm

MA820 TC Planachromat 4X objective ∞/1.0, NA: 0.13, Working Distance = 17.3mm, F.L.= 50.0
MA821 TC Planachromat 10X objective ∞/1.0 , NA: 0.25, Working Distance = 7.6mm, F.L.= 20.0
MA822 TC Planachromat 20X, objective ∞/1.0  NA: 0.40, Working Distance = 7.0mm, F.L.= 10.0
MA823 TC Planachromat 40X objective ∞/1.0 , NA: 0.65, Working Distance = 2.8mm, F.L.= 5.0

Phase Contrast Objectives - Planachromat - Infinity Corrected - F = 200mm

MA825 TC Planachromat Phase 4X objective ∞/1.0, NA: 0.13, Working Distance = 17.3mm, F.L.= 50.0
MA826 TC Planachromat Phase 10X objective ∞/1.0, NA: 0.25, Working Distance = 7.6mm, F.L.= 20.0
MA827 TC Planachromat Phase 20X objective ∞/1.0, NA: 0.40, Working Distance = 7.0mm, F.L.= 10.0
MA828 TC Planachromat Phase 40X objective ∞/1.0,  NA: 0.65, Working Distance = 2.8mm, F.L.= 5.0

Epi-Fluorescent Objectives - Planachromat - Infinity Corrected - F = 200mm

MA849 TC Planachromat F4X objective ∞/1.0, NA: 0.13, Working Distance = 17.5mm, F.L.= 50.0
MA850 TC Planachromat F10X objective ∞/1.0, NA: 0.30, Working Distance = 7.5mm, F.L.= 20.0
MA851 TC Planachromat F20X objective ∞/1.0, NA: 0.40, Working Distance = 7.5mm, F.L.= 10.0
MA852 TC Planachromat F40X objective ∞/1.0,  NA: 0.60, Working Distance = 2.9mm, F.L.= 5.0

Accessories

MA861 Green interference filter in 51mm mount (546nm)
MA863 Cobalt clear filter in 51mm mount
MA856 Blue filter, LB100, in 51mm mount
MA857 Green filter, G533, in 51mm mount (533nm)
MA858 ND25 Neutral density filter for brightfield or phase contrast, in 51mm mount

Epi-Fluorescent Parts & Accessories

TC-FL Fluorescent Illuminator Attachment includes UV Exciter Filter Set
TC-LH Lamphouse for 100W Mercury Lamp
FL-PW Power supply for Lamphouse
BA005 Replacement Mercury Lamp HBO 100W/2
BA013 Replacement Xenon Lamp XBO 75W/2
MA865 Basic Blue Excitation Filter set
MA866 Basic Green Excitation Filter set
MA196 ND50 Neutral density filter for epi-illuminator (optional)
MA197 ND13 Neutral density filter for epi-illuminator (optional)
MA860 ND25 Neutral density filter for epi-illuminator (included with TC5500, TC5600)

Miscellaneous Parts & Accessories

MA814 Siedentopf type binocular head, 30 degree inclination, 30mm I.D. eyetubes
MA816 Siedentopf type trinocular head, 30 degree inclination, 30mm I.D. eyetubes
MA853 TC Condenser, N.A. 0.30, working distance 73mm
MA854 TC Condenser, N.A. 0.55, working distance 20.5mm (for use with 40X phase objective)
MA380/05 Mechanical Stage, movement: 112mm(X) x 72mm(Y) with drop down coaxial controls.
MA382 Glass Slide Holder for 1" X 3" slides
MA383 Chamber holder
MA864 Terasaki plate holder
MA384 Petri Dish Holder for 35mm diameter dishes
MA385 Petri Dish Holder for 55mm diameter dishes
MA387 Petri Dish Holder for 65mm diameter dishes
MA378 Hemacytometer holder
MA809 Replacement AC Power cord with plug
MA855 Phase Slider
MA458/05 Centering Telescope for phase contrast, O.D.= 30.0mm
