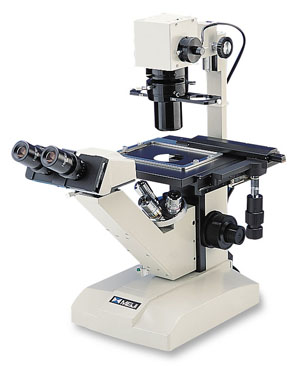

Meiji Techno VT Series Inverted Microscopes
Our entry-level inverted microscopes, the VT Series, are ideal for examining tissue
cultures, microbes, and other live specimens in petri dishes and culture bottles.
The six models in the table below offer you a choice of viewing heads, objective
magnification, mechanical stage, condenser working distance, and brightfield or
phase contrast techniques.

VIEWING HEADS

Available with standard binocular heads or trinocular heads for photomicrography,
30° inclined eyetubes with adjustable diopter settings and interpupillary distance,
60° rotatable.

EYEPIECES
Paired DIN HWF10x, FN 18.

OBJECTIVE CHANGER

Smooth-operating, ball bearing mounted, quadruple nosepiece.

OBJECTIVES

Infinity corrected, long working distance S. Planachromats standard for brightfield
or phase contrast.

STAGE

180mm x 200mm fixed surface. An attached mechanical stage with 112mm (X) by
72mm (Y) movement, drop-down coaxial controls, and plate holder is either standard
or optional, depending on model. Slide, chamber, and petri dish holding plates of
various sizes available separately.

ILLUMINATOR

Built-in, 6V 20W, variable-intensity tungsten lamp

CONDENSERS

Brightfield models come with an extra-long working distance condenser with NA 0.30 and working distance of 55mm. Some models also come with a long working distance condenser with NA 0.55 and working distance of 21mm. Phase contrast models come with a long working distance phase condenser with NA 0.55, working distance 21mm, and pre-centered phase annuli in sliding mount.
