TDI DigiCAM
|
DigiCAMII
|
|
|
Digital camera  |
|
|
●TDI DigiCAM 은 1 메가 픽셀 eksdnl의 CCD 센서를
채용하여 선명한 화질을 획득할 수 있으며 15
프레임의 고속 Preview가 가능합니다.
또한 CCD 센서를 채용하고도 CMOS 급 카메라 보다 합리적인
가격을 제공하며, C-Mount 타입 산업용 렌즈를 장착할 수 있습니다.
●DigiCAMII 는 USB 2.0 지원, 1.3 메가 픽셀의 고해상도 산업용
디지털 카메라 입니다.
DigiCAMII 는 최대 1280x1024 해상도, on-board 프로세싱 기술을 통해 뛰어난 영상 화질 제공은 물론,
USB 2.0 케이블 지원 방식으로 사용 상의 편리함도 제공하고 있습니다
＊ 1.3
Mega pixel Image Sensor
＊
Color, Progressive scan
＊
Lower Fixed Pattern Noise
＊
High Speed USB2.0 (4.8Mb/s)
＊ 15
fps at 1280x1024 resolution, 60 fps at 640x480 resolution
＊
Auto Exposure / Auto White Balance support
＊
Snap-shot mode for use with strobe
＊ RGB
Bayer video output
＊
Select 8or 10-bit pixel data
＊
Faster frame rates with reduced Region of Interest
＊
GPI/Os for control of peripherals and synchronization of lighting
(4in/4out)
＊
Preview Software provided (IMP CamPreview)
＊
Software compatible with Windows98SE/Me/2K/XP operating systems
＊
TWAIN and Direct Show Compatible | |
|
|
|
|
|
Device |
1/3 inch Interline Wfine CCD |
1/2 inch CMOS Sensor |
|
Effective
Pixels |
800,000 pixels - 1034(H) x 779(V) |
1280x1024, 5.2 um square pixels |
|
Picture Size
Resolution |
SVGA(1024x768), XGA(800x600), VGA(640x480) |
-
|
|
Interface Support |
WDM, Twain32 |
-
|
|
Cell Size |
4.65 x 4.65 micrometers |
-
|
|
Scanning
System |
Progressive Scanning |
-
|
|
Frame Rate |
15 fps (in a full resolution) |
15 fps at
1280Í1024,
60fps at 640x480 |
|
Synchronization |
Internal Sync |
-
|
|
Lens Mount |
C-mount, CS-mount |
C-mount |
|
Interface |
IEEE 1394 - 2 ports |
Standard USB (USB
2.0) |
|
Transfer
Rate |
400 Mbps / Max |
-
|
|
Gain
Control |
AGC (0-18dB), FIX (0dB), Manual (0-18dB) |
-
|
|
White
Balance |
Auto or Manual |
Automatic /
Manual |
|
Shutter
Speed |
1/20,000 ~ 2 sec |
-
|
|
Gamma |
1.0 Approx. |
-
|
|
Min.
Illumination |
15 Lux at F2.0 |
-
|
|
S/N Ratio |
56dB or better |
-
|
|
Power Supply
Voltage |
8-30 VDC from IEEE-1394 cable |
USB bus power, or
external 6VCD, 500mA |
|
Power
Consumption |
3.5W at 8-30 VDC Approx. |
~ 2.5
Watts |
|
Weight |
300g Approx. |
~ 150g /
300g |
|
Dimensions |
61(W) x 61(H) x 52.3(D) |
2.00x2.50x1.63
inches (Board Level)
2.25x3.81x1.56
inches (enclosed) |
|
Operation
Temp./
Humidity |
-10 to + 50˚C |
0 ℃ ~ +50
℃
20 % ~ 80 %
Non-Condensing
|
|
Storage
Temp. |
-20 to + 60˚C |
-
|
|
Regulations |
FCC, CE, MIC |
-
|
|
Supplied
Accessories |
Lens cover, OLPF, User’s Manual |
-
|
|
Frame
Buffer |
-
|
3 Frame buffer
(Optional expansion to 12 frames) |
|
System
Requirements |
CPU |
- Pentium III 750 or
greater |
|
|
Memory |
- 128 MB or
greater |
|
|
HDD space |
- 40 MB or
greater |
|
|
OS |
- Windows 98 SE, Windows 2000,
Windows XP |
|
|
etc. |
- IEEE1394 |
|
|
|

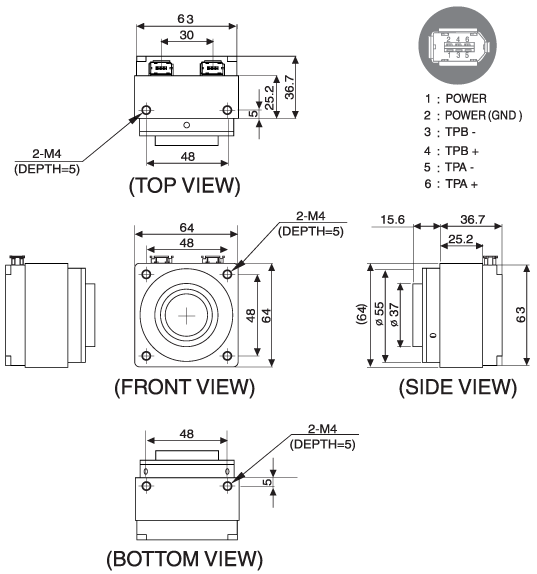

 DigiCAM Design Diagram
