MG-4D

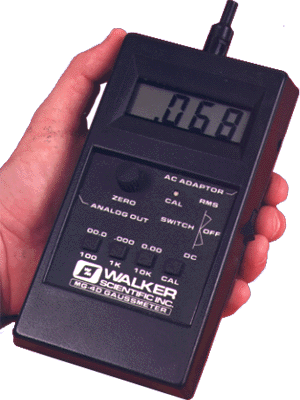

General : The MG-4D is a fully portable hand-held Hall effect gaussmeter designed
as a true self-contained instrument for DC and AC (RMS) magnetic field measurements.
Light and small in size, the MG-4D provides the operator with both the convenience of hand-held
portability and the accuracy associated with laboratory instruments.

Three full-scale bipolar ranges of ±100 Gauss, ±1kG and ±10kG with 100% over-range and
resolution of 0.05% provides DC and AC field readings from ±0.1 gauss to ±19.99 kG (1X probe)
with true RMS readings from 10 Hz to 20 kHz; readings are displayed on a 3 1/2 digit ±0.1% bipolar
LCD meter.

Because the MG-4D is a Hall effect instrument, a Hall Probe is required to couple with and
measure the magnetic field. A wide selection of precalibrated transverse and axial Hall probes is
available to meet most applications. The measuring range of this instrument can be extended to
150kG with select probes.

Standard features include batteries, carrying case, and a 6' extension probe cable.
A battery eliminator which can be supplied as an option, will provide for AC operation when required. Alkaline batteries can also be replaced with "AA" rechargeable batteries.

Applications :

• Measure residual fields
• Analyze magnetic circuits and components
• Classify magnets
• Measure absolute & differential fields
• Plot field uniformity
• Measure stray & leakage fields

Features :

• 3 1/2 digit 0.1% bipolar display
• DC & AC fields, ±100 milligauss to ±19.99kG with 1X probes
• Range extendable to 150kG with select probes
• True RMS readings to 20kHz
• 6' probe extension cable: Standard
• Wide selection of precalibrated probes: 1X, 10X, and 100X
• Operates up to one year with standard "AA" alkaline batteries
• Optional battery eliminator
• Vinyl carrying pouch: Standard
• High impact plastic case
• One year warranty
• Analog Output

 Accessories :

Battery Eliminator (Model CE-4D) The MG-4D gaussmeter is provided with four economical "AA" alkaline batteries which are readily available if replacement becomes necessary. The CE-4D provides for direct AC line operation without batteries.

Optional Field Service Carrying Case

 Specifications :

Display : (Digital)
3 1/2 digit +0.1% bipolar LCD (Liquid Crystal Display)

Range :
3 Full Scale Ranges: ±100 Gauss, ±1kG and ±10kG with 100% over range (±100 milligauss to ±19.99kG)

Resolution : (With 100% over-range)
0.05% (±100 milligauss 100 Gauss range, ±1 gauss 1kG range, ±10 gauss - 10kG range)

Instrument Accuracy : (Less Probe)

Range Setting	DC Accuracy FS
100G-DC	±0.1%
1kG-DC	±0.1%
10kG-DC	±0.1%
	RMS Accuracy 1% - FS
100G-RMS	±1% 10Hz-10kHz, ±10%, -20kHz (5%-100% F.S.)
1kG-RMS	±1% 10Hz-10kHz, ±2%, -20kHz (1%-100% F.S.)
10kG-RMS	±1% 10Hz-10kHz, ±2%, -20kHz (1%-100% F.S.)

Power :
6V; 4 "A" 1.5 Alkaline Batteries - Standard

Battery Life :
Exceeds 16 hours continuous operation with fully charged batteries.

Optional :
Battery eliminator - 105V - 257V/50-60 Hz. Charge rate 5 mA.

Physical (Less Probe):
Size: 2.125"H x 3.63"W x 6.13"L - 5.4cm H x 9.2cm W x 15.6cm L
Net Weight: 14 ounces - 0.4 kg
Shipping Weight: 1.5 Ibs. - 0.7 kg

AnaIog Output : ±100mV with 100% Overrange (black)
