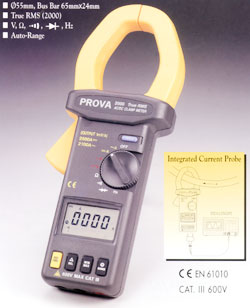

ELECTRICAL SPECIFICATIONS :
(23℃±5℃)
■ DC
Current :
|
Range |
Resolution |
Accuracy(of rdg) |
Overload Protection |
|
400A |
0.1A |
1.5% 3dgts |
DC 3000A |
|
0-2000A |
1A |
1.5% 3dgts |
DC 3000A |
|
2000-2500A |
1A |
2.0% 3dgts |
DC
3000A |
■ AC Current (Crest Factor < 4) :
|
Range |
Resolution |
Accuracy(of rdg) |
Overload Protection |
|
50/60Hz |
40-1kHz |
|
400A |
0.1A |
1.5% 5dgts |
2.0% 5dgts |
AC 3000A |
|
0-1000A |
1A |
2.0% 5dgts |
2.5% 5dgts |
AC 3000A |
|
1000-2100A |
1A |
2.5% 5dgts |
3.0% 5dgts |
AC 3000A |
■ DC Voltage(Autorange &
Manual, Overload Protection 800VAC for all ranges)
|
Range |
Resolution |
Accuracy(of rdg) |
Input Impedance |
|
400mV |
0.1mV |
1.5% 3dgts |
10MΩ |
|
4V |
0.001V |
1.5% 3dgts |
5MΩ |
|
40V |
0.01V |
1.5% 3dgts |
5MΩ |
|
400V |
0.1V |
1.5% 3dgts |
5MΩ |
|
600V |
1V |
1.5% 3dgts |
5MΩ |
■ AC Voltage(Crest Factor < 4)
(Autorange & Manual, Overload Protection 800VAC for all
range)
|
Range |
Resolution |
Accuracy |
Input Impedance |
|
50/60Hz |
40/1KHz |
|
400mV |
0.1mV |
-------1 |
-------1 |
-------1 |
|
0.01V-4V |
0.001V |
1.5% 5dgts |
2.0% 5dgts |
5MΩ |
|
40V |
0.01V |
1.5% 5dgts |
2.0% 5dgts |
5MΩ |
|
400V |
0.1V |
1.5% 5dgts |
2.0% 5dgts |
5MΩ |
|
600V |
1V |
1.5% 5dgts |
2.0% 5dgts |
5MΩ |
1 Though 400mVAC can be selected by RANGE key, it is
not designed to measured AC mV,
So no accuracy is listed for AV 400mV
range
■ Resistance Ω (Autorange &
Manual, Open Circuit Voltage ≤0.5V)
|
Range |
Resolution |
Accuracy(of rdg) |
Overload Protection |
|
400Ω |
0.1Ω |
1.5% 3dgts |
600VAC |
|
4KΩ |
1Ω |
1.5% 3dgts |
600VAC |
|
40KΩ |
10Ω |
1.5% 3dgts |
600VAC |
|
400KΩ |
100Ω |
1.5% 3dgts |
600VAC |
|
4MΩ |
1KΩ |
1.5% 3dgts |
600VAC |
|
40MΩ |
10KΩ |
1.5% 3dgts |
600VAC |
■ Resistance (Ω) and Continuity :
(open voltage 0.4V)
|
Range |
Resolution |
Accuracy |
Beeping |
Overload Protection |
|
40-400Ω |
0.1Ω |
1.0% 2dgts |
<40.0Ω(approx.) |
AC 600V |
■ Current Analog
Output
|
Range |
Output |
Accuracy |
Overload Protection |
|
0-400A |
1mV/A |
±2.5% ±0.5A |
600V AC |
|
400-2100A |
1mV/A |
±2.5% ±5A |
600V AC |
■ Diode Test
|
Range |
Resolution |
Accuracy |
Overload Protection |
|
3V |
0.001V |
±2.5% ±5dgts |
600V AC |
■ Frequency :
(Hz, Overload
PROTECTION 600VAC, Sensitivity Selected by RANGE button)
|
Range |
Resolution |
Accuracy |
Sensitivity |
|
100Hz-1000KHz |
0.01Hz-10KHz |
±(0.5%rdg ±2dgts) |
10mV/100mV/1V |
GENERAL SPECIFICATIONS :
- Conductor Size : Cable Φ55mm.
(approx.)
Bus Bar 65mm(D) x 24mm(W)
- Battery Type : 9V
- Display : 3-3/4 LCD with 40 seg. Bargraph
- Range Selection : Auto and manual
- Overload Indication : left most digit blinks
- Sampling Time : 2 times/sec.
(display)
20 times/sec. (bargraph)
- Operating Temperature : 4℃ to 50℃
- Operating Humidity : less than 85% relative
- Alititude : up to 2000M
- Storage Temperature : -20℃ to 60℃
- Storage Humidity : less than 75% relative
- Dimension : 271mm (L) x 112mm (W) x 46mm (H)
- Weight : 647g (battery Included)
- Accessories : Carrying bag, Users manual, 9V battery, Test
Leads
|
