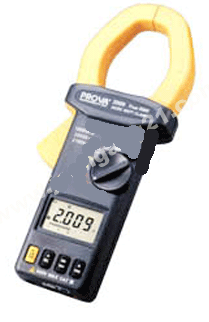

ELECTRICAL SPECIFICATIONS :
(23℃±5℃)
■ DC
Current
|
Range |
Resolution |
Accuracy |
Overload Protection |
|
400A |
0.1A |
±1.5% + 3dgts |
DC 3000A |
|
0-2000A |
1A |
±1.5% + 3dgts |
DC 3000A |
|
2000-2500A |
1A |
±2.0% + 3dgts |
DC
3000A |
■ AC Current (True RMS, Crest Factor < 3) :
|
Range |
Resolution |
Accuracy(of rdg) |
Overload Protection |
|
50/60Hz |
40-1kHz |
|
400A |
0.1A |
±1.5% + 53dgts |
±2.0% + 5dgts |
AC 3000A |
|
0-1000A |
1A |
±2.0% + 5dgts |
±2.5% + 5dgts |
AC 3000A |
|
1000-2100A |
1A |
±2.5% + 5dgts |
±3.0% + 5dgts |
AC 3000A |
■ Current Analog
Output
|
Range |
OUTPUT |
Accuracy |
Overload Protection |
|
0-400A |
1mV/A |
±2.5% + 0.5A |
600V AC |
|
400-2100A |
1mV/A |
±2.5% + 5A |
600V AC |
■ DC Voltage (Autorange &
Manual, Overload Protection 800VAC for all Range)
|
Range |
Resolution |
Accuracy |
Input Impedance |
|
400mV |
0.1mV |
±1.5% + 3dgts |
10MΩ |
|
4V |
0.001V |
±1.5% + 3dgts |
5MΩ |
|
40V |
0.01V |
±1.5% + 3dgts |
5MΩ |
|
400V |
0.1V |
±1.5% + 3dgts |
5MΩ |
|
600V |
1V |
±1.5% + 3dgts |
5MΩ |
■ AC Voltage(True RMS, Crest <
3,
Autorange & Manual, Overload Protection 800VAC for all
range)
|
Range |
Resolution |
Accuracy |
Input Impedance |
|
50/60Hz |
40/1KHz |
|
400mV |
0.1mV |
-------1 |
-------1 |
-------1 |
|
4V |
0.001V |
±1.5% + 5dgts |
±2.0% + 5dgts |
5MΩ |
|
40V |
0.01V |
±1.5% + 5dgts |
±2.0% + 5dgts |
5MΩ |
|
400V |
0.1V |
±1.5% + 5dgts |
±2.0% + 5dgts |
5MΩ |
|
600V |
1V |
±1.5% + 5dgts |
±2.0% + 5dgts |
5MΩ |
1 400mVAC is not designed to measured AC mV,
So no accuracy is listed.
■ AC+DC Power (250V max,
Auto-range and Manual)
|
Range |
Resolution |
Accuracy(of reading) |
Overload Protection |
|
40KW |
0.01KW |
±2.5% + 5dgts |
600VAC |
|
400KW |
0.1KW |
±2.5% + 5dgts |
600VAC |
■ AC+DC Power (600V max,
Auto-range and Manual)
|
Range |
Resolution |
Accuracy(of reading) |
Overload Protection |
|
400KW |
0.1KW |
±2.5% + 5dgts |
600VAC |
|
1200KW |
1KW |
±2.5% + 5dgts |
600VAC |
■ Temperature ℃(K-Type Thermal
Couple, Auto-range and Manual), or ℉
|
Range |
Resolution |
Accuracy |
Overload Protection |
|
-50-400℃ |
0.1℃ |
±1% ±2℃ |
600VAC |
|
400-1000℃ |
1℃ |
±1% ±2℃ |
600VAC |
|
-50-400℉ |
0.1℉ |
±1% ±3℉ |
600VAC |
|
400-1000℉ |
1℉ |
±1% ±3℉ |
600VAC |
■ Resistance (Ω) and Continuity
: (open voltage 0.4V)
|
Range |
Resolution |
Accuracy |
Beeping |
Overload Protection |
|
40-400Ω |
0.1Ω |
±1.0% + 2dgts |
<40.0Ω |
600VAC |
GENERAL SPECIFICATIONS :
- Conductor Size : Cable Φ55mm.
(approx.)
Bus Bar 65mm(D) x 24mm(W)
- Battery Type : 9V
- Display : 3-3/4 LCD with 40 seg. Bargraph
- Range Selection : Auto and manual
- Overload Indication : left most digit blinks
- Power Consumption : 12mA (approx.)
- Sampling Time : 2 times/sec.
(display)
20 times/sec. (bargraph)
- Operating Temperature & Humidity : 4℃ to 50℃below 85%
RH
- Storage Temperature & Humidity : -20℃ to 60℃ below 75%
RH
- Dimension : 271mm (L) x 112mm (W) x 46mm (H)
- Weight : 647g (batteries Included)
- Accessories : Carrying bag x 1, Users manual x 1, 9V battery x 1,
Test Leads
- Options : Thermal couple adapter, K-type thermal couple
|
