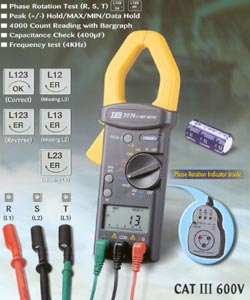

TES-3074  |
|
●Capacitance Measurement (400㎌)
●MAX / MIN / Data Hold
●Phase Rotation Indicator
●Pos Peak Hold & Neg Peak Hold
●1000A AC & 600V AC | |
|
|
|
A : General Measurement
■ AC Current
|
Range |
Resolution |
Accuracy |
Frequency
response |
Overload
protection |
|
40A |
0.01A |
±(2%+5) |
40~400Hz |
1100A |
|
400A |
0.1A |
|
1000A |
1A |
■ AC Voltage
|
Range |
Resolution |
Accuracy |
Input
impedance |
Frequency
response |
Overload
protection |
|
400V |
0.1V |
±(1.2% + 5) |
1MΩ |
40~400Hz |
600Vrms |
|
600V |
1V |
±(3% + 5) |
■ 3Φ Phase
|
Range |
Frequency response |
Overload
protection |
|
80V~480V |
40Hz~400Hz |
600Vrms |
■ Frequency
|
Range |
Resolution |
Accuracy |
Input
impedance |
Overload
protection |
|
4KHz |
1Hz |
±(0.5% + 5) |
1MΩ |
600Vrms |
■ Resistance(Ω)
|
Range |
Resolution |
Accuracy |
Open circuit
voltage |
Overload
protection |
|
40kΩ |
10Ω |
±(1% + 5) |
≤0.5VDC |
600Vrms |
■ Audible
continuity
|
Range |
Resolution |
Open circuit voltage |
Overload
protection |
|
|
≤40Ω |
≤3VDC |
600Vrms |
■ Capacitance
|
Range |
Resolution |
Accuracy |
Overload
protection |
|
400㎌ |
1㎌ |
±(3% + 5) |
600Vrms |
B : Peak Hold Measurement
■ AC Current
|
Range |
Resolution |
Accuracy |
Overload
protection |
|
40A |
0.01A |
±(2.5% + 30) |
1100A |
|
400A |
0.1A |
|
1000A |
1A |
■ AC Voltage
|
Range |
Resolution |
Accuracy |
Overload
protection |
|
400V |
0.1V |
±(2.5% + 10) |
600Vrms |
|
600V |
1V |
GENERAL SPECIFICATIONS :
- Numerical Display : 3-3/4 digit liquid crystal display (LCD)
maximum reading 3999
40 segment
bargraph
- Range Selection : All ranges are selected by a single range
switch
- Over Range Indication : LCD will show an "OL"
- Low Battery Indication : LCD will show an "
 "
- Sampling Rate : 1.3 times/sec(Digital), 13.3 times/sec
(Bargraph)
- Power Source : one 006p 9V or IEC 6F22 or NEDA 1604 Battery
- Battery Life : 200hr approx.
- Jaw Opening Diameter : Cables Φ40mm
- Operating & storage/Temperature and Humidity
: 0℃ to 40℃(32℉ to 104℉) < 80%RH.
-10℃ to 60℃(14℉ to 140℉)
< 70%RH
- Dimensions and Weight : 228(L) x 76(W) x 39(H)mm and Approx.
370g
- Accessories : Battery, Manual, Carry Case, 3pcs Test Leads, 3pcs
Crocodile Clips
|
|
