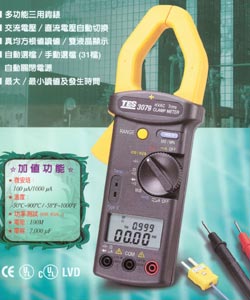

Àü±â/ÀüÀÚ°èÃø±âAC Digital Clamp Meter(1000A)TES-3079





TES-3079



¡ÜHVAC Application :
  • Check current draw in motors and compressors
  • Use MAX/MIN/Recording in the temperature mode to assess efficiency
  • Test run/start capacitors
  • Confirm low voltage control signals
  • Measure flame safeguard device current draw
  • Confirm power sources
  • Analyze temperature and power data with the aid of the time stamp
  • Insulation test up to 100M§Ù

¡Ü Electrical Application :

  • Check for energized circuits
  • Balance loads
  • Evaluate electrical contacts
  • Capture motor in-rush current readings
  • Determine peak power demand periods
  • Verify line voltage stability
  • Monitor motors and other loads for excess heat
  • Check motor run/start capacitor values



ELECTRICAL SPECIFICATIONS : (23¡É±5¡É)



 ¡á AC Current(50Hz to 400Hz): Trms

Range

Resolution

Accuracy

Sensitivity

Overload

protection

99.99A

10mA

±2%±20dgts(50,60Hz)
±4%±20dgts(40-400Hz)

0.10A

1000A

999.9A

100mA

1.0A



 ¡á §Ë Trms : (AC+DC) (Burden Voltage : 5mV/§Ë)

Range

Resolution

Accuracy

Sensitivity

Overload

protection

99.99§Ë

10nA

±1% ±20dgts

0.20§Ë

600V

999.9§Ë

100nA

2.0§Ë



 ¡á AC Voltage(50Hz to 400Hz): Trms

Range

Resolution

Accuracy

Sensitivity

Overload

protection

999.9mV

0.1mV

±1%±20dgts(50,60Hz)
±2%±20dgts(40-100Hz)

2.0mV

600V

9.999V

1mV

±1%±20dgts(50,60Hz)
±2%±20dgts(40-400Hz)

0.020V

99.99V

10mV

0.20V

600.0V

100mV

2V

 input impedance : 3M§Ù

 ¡á DC Voltage

Range

Resolution

Accuracy

Sensitivity

Overload

protection

999.9mV

0.1mV

±1.0% ±20dgts

2.0mV

600V

9.999V

1mV

0.020V

99.99V

10mV

0.20V

600.0V

100mV

2V

 input impedance : 3M§Ù

 ¡á Resistance(Continuity<40§Ù on the 999.9§Ù range) :

Range

Resolution

Accuracy

Overload Protection

999.9§Ù

100m§Ù

1% ±10dgts

600V

9.999K§Ù

1§Ù

99.99K§Ù

10§Ù

999.9K§Ù

100§Ù



 ¡á M§Ù :

Range

Resolution

Accuracy

Overload Protection

9.999M§Ù

1K§Ù

5% ±10dgts

600V

99.99M§Ù

10K§Ù



 ¡á Capacitance :

Range

Resolution

Accuracy

Overload Protection

10.000§Þ

1nF

1.5% ±5dgts

600V

100.00§Þ

10nF

1000.0§Þ

100nF

7000§Þ

1§Þ

2.5% ±15dgts



 ¡á Diode(Continuity<40mV) :

Range

Resolution

Accuracy

Overload Protection

2.000V

1mV

±2% ±1dgts

600V



 ¡á Temperature (K-Type thermocouple) :

Range

Resolution

Accuracy

Overload Protection

-50¡É to 900¡É

0.1¡É

1% ±1¡É

30VAC or 60VDC

-58¢µ to 1000¢µ

0.1¢µ

1% ±2¢µ



 ¡á TRUE Power : (PF>0.7 or ¥è<45¢ª)

Range

Resolution

Accuracy

Overload Protection

60.00KW(<100A)

10W

±5%rdg ±20dgts(50,60Hz)

600VAC/1000AAC

600.0KW(>100A)

100W



 ¡á Apparent Power :

Range

Resolution

Accuracy

Overload Protection

60.00KVA(<100A)

10VA

±2.5%rdg ±20dgts

600VAC/1000AAC

600.0KVA(>100A)

100VA



 ¡á Phase Angle :

Range

Resolution

Accuracy

Sensitivity

-45¢ª~+45¢ª

0.1¢ª

±3.0¢ª

ACV>100V, ACA>10A



 ¡á Frequency :

Range

Resolution

Accuracy

Sensitivity

45Hz~1KHz

0.1Hz

±0.5%rdg ±2dgts

ACV>0.2V, ACA>6A



 GENERAL SPECIFICATIONS :

   Maximum voltage betwer any terminal and earth ground : 600Vrms



  • Numerical Dual Display : Dual display, 4 digital LCD maximum reading 9999
                                                           (10,000 Count Reading)
  • Battery Life : approx. 80hr
  • Low Battery Indication : The is displayed when the battery voltage drops
                                             below the operating voltage
  • Auto power off time : Approx. 30 minutes
                                        (To disable Auto Power off, please refer to 4-9)
  • Sampling Rate : 2.5 times/sec(Digital Dispaly)
                               1 times/6 sec (on KW, KVA)
  • Jaw opening diameter : Cables ¥õ40mm
  • Operating temperature and humidity : 0¡É to 50¡É(32¢µ to 122¢µ)
                                                                    R.H.< 80% no-condensing
  • Temperature coefficient : 0.1 x (specified accuracy)/¡É
                                             (<18 or >28¡É, <64 or >82¢µ)
  • Storage temperature and humidity : -10¡É to 60¡É(14¢µ to 140¢µ)
                                                                    R.H.< 70% no-condensing
  • Dimensions : 228(L) x 76(W) x 39mm(H)
  • Weight : Approx. 465g
  • Accessories : Carrying case, Test leads, Battery(one 006p 9V),
                             One pair of alligator clip & Instruction manual
