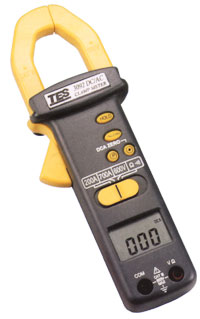

TES-3092  |
|
●3-1/2 Digital LCD, 2000 count.
●Pocket size.
●MAX hold / Data hold function.
●One touch DCA zero | |
|
|
|
DC Current
|
Range |
Resolution |
Accuracy |
Overload protection |
|
200A |
0.1A |
+/- ( 1.5%rdg +
2dgts) |
700Arms |
|
700A |
1A |
AC Current
|
Range |
Resolution |
Accuracy |
Frequency Range |
Overload protection |
|
200A |
0.1A |
+/- ( 2%rdg +
4dgts) |
50 /
60Hz |
700Arms |
|
700A |
1A |
DC Voltage (Auto Range)
|
Range |
Resolution |
Accuracy |
Input
Impedance |
Overload
protection |
|
600V |
1V |
+/- (1%rdg +
1dgts) |
1MW |
600Vrms |
AC Voltage
|
Range |
Resolution |
Accuracy |
Frequency
Range |
Input
Impedance |
Overload
protection |
|
600V |
1V |
+/- (1.5%rdg +
4dgts) |
50 ▲
400Hz |
1MW |
600Vrms |
Ohms (Resistance)
|
Range |
Resolution |
Accuracy |
Overload protection |
|
2KW |
1W |
+/- ( 1%rdg+
1dgts) |
600Vrms |
Continuity beeper
|
Range |
Sound Level |
Max Open Circuit Voltage |
Overload protection |
|
|
<=30W |
3V |
600Vrms |
GENERAL SPECIFICATIONS
|
LCD Display |
3-1/2 digits, (MAX
1999).
OL for over-range indication.
 for Low battery indication. |
|
Power Source |
One 9V
battery.(006P or IEC6F22). |
|
Battery Life |
100hr
approx. |
|
Operating/Storage Condition |
0oC to
50oC < 80%RH. -10oC to
60oC < 70%RH. |
|
Dimensions |
188(L) x 62.5(W) x
30.5(H)mm |
|
Weight |
Approx. 185
g |
|
Jaw Opening Diameter |
Cables 27.5
mm |
|
Accessories |
Instruction Manual
,Battery, Test Lead and Carrying Case . |
|
|
