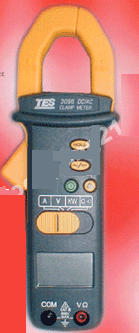

Àü±â/ÀüÀÚ°èÃø±âWatt Clamp Meter(1000A)TES-3096/3096T





TES-3096/3096T



¡Ü3-3/4 Digital LCD, 4000count, Autoranging
¡ÜAC/DC KW, Current, Voltage measurement
¡ÜAC/DC Current 0.1A to 600A
¡ÜResistance and Continuity test
¡ÜData hold function
¡ÜPocket size
¡ÜAuto power off
¡ÜTrms AC KW, AC Current, AC Voltage measurement(TES-3096T)



ELECTRICAL SPECIFICATIONS :


 ¡á DC KW (Auto Range)

Range

Resolution

Accuracy

Overload
protection

40.00KW

0.01KW

±(2% + 10)

420KW

250.0KW

0.1KW

±(2% + 5)



 ¡á AC KW (Auto Range)

Range

Resolution

Accuracy

Frequency
Range

Overload
protection

40.00KW

0.01KW

±(2% + 10)

50 ~ 400Hz

420KW

250.0KW

0.1KW

±(2% + 5)



 ¡á DC Current(Auto Range)

Range

Resolution

Accuracy

Overload protection

400A

0.1A

±(1.5% + 5)

900Arms

600A

1A



 ¡á AC Current(Auto Range)

Range

Resolution

Accuracy

Frequency Range

Overload protection

400A

0.1A

±(1.5% + 10)

50 ~ 400Hz

800Arms

600A

1A



¡á DC Voltage(Auto Range)

Range

Resolution

Accuracy

Input
Impedance

Overload
protection

400V

0.1V

±(1% + 5)

1M§Ù

600Vrms

600V

1V





 ¡á AC Voltage(Auto Range)

Range

Resolution

Accuracy

Frequency

Range

Input
Impedance

Overload
protection

400V

0.1V

±(1% + 10)

50 ~ 400Hz

1M§Ù

600Vrms

600V

1V



 ¡á Resistance (Autorange)

Range

Resolution

Accuracy

Overload protection

400§Ù

100m§Ù

±(1% + 3)

600Vrms

4000§Ù

1§Ù



 ¡á Continuity beeper

Range

Sound Level

Max Open Circuit Voltage

Overload protection

¡Â38§Ù

3.3V

600Vrms





 GENERAL SPECIFICATIONS :



  • Numerical Display : 3-3/4 digit liquid crystal display (LCD) maximum reading 3999
  • Over Range Indication : LCD will show an "OL"
  • Low Battery Indication : The is displayed when the battery voltage drops
                                             below the operating voltage
  • Power Source : One 9V battery (006P or IEC6F22)
  • Battery Life : 100hr approx.
  • Operating Temperature and Humidity : 0¡É to 40¡É(32¢µ to 122¢µ) below 80%RH.
  • Storage Temperature and Humidity : -10¡É to 60¡É(14¢µ to 140¢µ) below 70%RH.
  • Dimensions : 192(L) × 64(W) × 31(H)mm
  • Weight : Approx. 240g
  • Jaw Opening Diameter : Cables ¥õ27mm
  • Accessories : Carrying case, Battery & Instruction Manual, Test Leads
