이화학기기/과학기기과학분석기기흡광(VIS 분광)광도계SMART SpectroTM

Smart Spectro TM



●이동 측정이 가능토록 소형 경량화한 기종이며, Option으로 충전 Battery를 사용할 수 있어 전원이
   없는 곳에서도 측정할 수 있슴.
●측정 항목별로 자동 파장 선택 기능을 내장하고 있어 측정하기가 매우 쉬움.
●40개 이상의 측정 항목에 대한 측정 방법, 정량 검량곡선 사항 등이 저장되어 있으며, 25개 까지
   사용자가 측정항목을 등록하여 사용할 수 있슴.
●파장 선택도와 측정정도가 우수하며, 흡광도, 투과율, 농도로 측정 결과치를 표시함.



MODEL

                      SMART SpectroTM

측정파장범위(Wavelength Range)

350nm ~1000nm

파장정확도(Wavelength Accuracy)

±2nm

파장분해능(Wavelength Resolution)

1 nm

파장Bandwidth(Wavelength Bandwidth)

5nm(Max)

측 광 범 위(Photometric Range)

투과율:0~125%T,흡광도:-0.1~2.5A

측 광 정 확 도(Photometric Accuracy)

±0.005A

측광 NoIse(Photometric Noice)

< 0.001A at OA, < 0.002A at 2A

측 광 재 현 성(Photometric Drift)

 ±0.002A/hr @500nm

산 란 광(Photometric Stray Light)

< 0.5%T

분 산 장 치(Dispersive Device)

Grating- based system

광학 Mount(Optical Mount)

 Modified Ebert

G r a t i n g

1200 grooves/mm ruled grating

광 원(Light Source)

Quartz halogen

L a m p 수명(Bulb Life)

1000hrs minimum

Sample Chamber

25mm round Cell. 10mm Square cuvetteUVD, 16mm COD. flow-thru (optional)

검 출 기(Detector)

Silicon photodiode

온 도 범 위(Temperature Range)

0∼40℃

Modes

Conc, %T, ABS

입력된 측정 항목

42항목 (측정항목 참조, 실질적으로 100항목 측정가능)

파 장 선 택(Wavelength Selection)

자동

연 속 설 정

3연속 측정 or사용자 측정, 저장편집 가능

사 용 자 측 정

가능:25개 까지 입력 및 편집 가능

Data logging/출력

가능, RS-232

진 단 기 능(Diagnostics)

사용자에 의한 자동교정 (파장)

전 원(Powe)

110V/220V  또는 Battery Pack(충전가능)

S I Z E / 무 게

35㎝×28㎝×17㎝, 4.65Kgs

C E mark

보유



■측정 가능 항목■

SMART Spectro Reagent Systems

Smart Reagents



제조회사 원문-측정 시약표

Test Factor
Range ppm
Test Method (# of reagents)
# of Tests
Smart2
Order Code
Alkalinity UDV

0-200

 UDV (1) 50

4318-H

Aluminum

0.00-0.30

 Eriochrome Cyanine R (4) 50

●

3641-SC

Ammonia Nitrogen-LR (Fresh Water)

0.00-1.00

 Salicylate (3) 25

●

3659-01-SC

Ammonia Nitrogen-LR (Salt Water)

0.00-1.00

 Salicylate (3) 25

●

3659-01-SC

Ammonia Nitrogen HR

0.00-4.00

 Nesslerization (2) 50

●

3642-SC

Boron

0.00-0.80

 Azomethine-H (2) 50

●

4868

Bromine LR

0.00-9.00

 DPD Tablets (3) 100

●

3643-SC

Bromine UDV

0.00-22.00

 Unit Dose Vial (1) 50

●

4311-H

Cadmium

0.00-1.00

 PAN (4) 50

●

4017

Carbohydrazide

0.000-0.9000

 Iron Reduction (3) 100

●

4857

Chloride TesTab

0.0-30.0

 Argentometric (1) 50

3693-SC

Chlorine

0.00-4.00

 DPD Tablets (3) 100

●

3643-SC

Chlroine Free UDV

0.00-10.00

 DPD (1) 50

4311-H

Chlorine Liquid DPD

0.00-4.00

 DPD (3) 144

4859

Chlorine Total UDV

0.00-10.00

 DPD (1) 50

4312-H

Chlorine Dioxide

0.00-8.00

 DPD tablet/Glycine (2) 50

●

3644-SC

Chromium Hexavalent

0.00-1.00

 Diphenylcarbohydrazide (1) 100

●

3645-SC

Chromium TesTab

0.00-1.00

 Diphenylcarbohydrazide (1) 50

●

3697-SC

Chromium (Total, Hex & Trivalent)

0.00-1.00

 Diphenylcarbohydrazide (5) 100

●

3698-SC

Cobalt

0.00-2.00

 PAN (3) 50

●

4851

COD LR  0-150 with Mercury

5-150

 Digestion (1) 25

●

5-0075

COD LR 0-150 without Mercury

5-150

 Digestion (1) 25

●

5-0072

COD SR  0-1500 with Mercury

0-1500

 Digestion (1) 25

●

5-0076

COD SR  0-1500 without Mercury

0-1500

 Digestion (1) 25

●

5-0073

COD HR  0-15,000 with Mercury

0-15,000

 Digestion (1) 25

●

5-0077

COD HR  0-15,000 without Mercury

0-15,000

 Digestion (1) 25

●

5-0074

Color

0-1000

 Platinum Cobalt  (0) ¥

NA

Copper BCA - LR

0.00-3.50

 Bicinchoninic Acid (1) 50

●

3640-SC

Copper Cuprizone

0.00-2.00

 Cuprizone (2) 50

4023

Copper DDC

0.00-6.00

 Diethyldithiocarbamate (1) 100

●

3646-SC

Copper UDV

0.00-4.00

 UDV, Bicinchoninic acid (1) 50

4314-H

Cyanide

0.00-0.50

 Pyridine-Barbituric Acid (5) 50

●

3660-SC

Cyanuric Acid

5-200

 Melamine (1) 100

●

3661-SC

Cyanuric Acid UDV

5-150

 Melamine, UDV (1) 50

●

4313-H

DEHA

0.000-0.700

 Iron Reduction (3) 100

●

4857

Dissolved Oxygen (DO)

0.0-12.0

 Winkler Colorimetric (3) 200

●

3688-SC

Erythorbic Acid

0.00-3.00

 Iron Reduction (3) 100

●

4857

Fluoride

0.00-2.00

 SPADNS (2) 50

●

3647-01-SC

Hydrazine

0.00-1.00

 p-dimethylaminobenzaldehyde (2) 25

●

3656-SC

Hydrogen Peroxide LR

0.00-1.50

 DPD Tablets (2) 100

●

3662-SC

Hydroquinone

0.00-2.00

 Iron Reduction (3) 100

●

4857

Iodine

0.00-14.00

 DPD Tablets (2) 100

●

3643-SC

Iron

0.00-6.00

 Bipyridyl (2) 50

●

3648-SC

Iron UDV

0.00-10.00

 Bipyridyl UDV (1) 50

4315-H

Iron Phenanthroline

0.00-4.50

 1,10 Phenanthroline (2) 50

●

3668-SC

Lead

0.00-5.00

 PAR (5) 50

●

4031

Manganese LR

0.00-0.50

 PAN (3) 50

●

3658-SC

Manganese HR

0.0-15.0

 Periodate (2) 50

●

3669-SC

Mercury

0.00-1.50

 TMK (3) 50

●

4861

Methylethylketoxime

0.00-3.00

 Iron Reduction (3) 100

4857

Molybdenum HR

0.0-50.0

 Thioglycolate (3) 50

●

3699-02-SC

Nickel

0.00-8.00

 Dimethylglyoxime (6) 50

●

3663-SC

Nitrate Nitrogen LR

0.00-3.00

 Cadmium Reduction (2) 20

●

3649-SC

Nitrate TesTab

0.0-60.0

 Zinc Reduction (1) 50

3689-SC

Nitrite Nitrogen LR

0.00-0.80

 Diazotization (2) 20

●

3650-SC

Nitrite TesTab

0.00-1.25

 Diazotization (1) 50

3694-SC

Ozone LR

0.00-0.40

 Indigo Trisulfonate (3) 100

●

3651-SC

Ozone HR

0.00-2.50

 Indigo Trisulfonate (3) 20

●

3651-SC

pH CPR (Chlorphenol Red)

5.0-7.0

 Colorimetric (3) 100

●

3700-SC

pH PR (Phenol Red)

6.6-8.4

 Colorimetric (3) 100

●

3700-SC

pH TB (Thymol Blue)

8.0-9.5

 Colorimetric (3) 100

●

3700-SC

Phenol

0.00-6.00

 4-Aminoantipyrine (3) 50

●

3652-SC

Phosphate LR

0.00-3.00

 Ascorbic Acid Reduction (2) 50

●

3653-SC

Phosphate HR

0.0-70.0

 Vanadomolybdophosphoric Acid(1) 50

●

3655-SC

Potassium

0.0-10.0

 Tetraphenylboron (2) 100

●

3639-SC

Silica LR

0.00-2.50

 Heteropoly Blue (4) 50

●

3664-SC

Silica HR

0-50

 Silicomolybdate (3) 50

●

3687-SC

Sulfate HR

6-100

 Barium Chloride (1) 50

●

3665-SC

Sulfide LR

0.00-1.00

 Methylene Blue (3) 50

●

3654-01-SC

Surfactants

0.5-8.0

 Bromphenol Blue (3) 50

4876

Tannin

0.0-10.0

 Tungstomolybdophosphoric Acid (2) 50

●

3666-SC

Turbidity

0-400

 Absorptimetric (0) ¥

●

NA

Zinc LR

0.00-3.00

 Zincon (6) 50

●

3667-SC

●는 다항목 수질측정기의 SMART2의 측정 항목 임

참고 번역문

Test NO

항 목 명

Test NO

항 목 명

*1
2
3
*4
*5
6
7
8
*9
10
11
12
13
14
15
*16
17
18
19
20
*21
22
*23
24
25
*26
*27
*28
29
*30
31
32
*33
34
35
*36
*37
38
39
*40
41
*42
43
44
45
*46
*47
48
49
50
*51
*52
53
*54
55
*56
57
58
59
60
*61
62
*63

Aluminum(알루미늄)
Alkalinity-TT(알카리)
Alkalinity-UDV(알카리)
Ammonia-NL(암모니아)
Ammonia-NH(암모니아)
Arsenic(비소)
Barium(바륨)
Boron(붕소)
Bromine-LR(브롬)
Bromine-HR(브롬)
Bromine-UDV(브롬)
Cadmium(카드뮴)
Ca Hard-UDV(알카리 경도)
Carbohydrazide(카보하이드라지드)
Chlorine(염소)
CI Free-UDV-LR(유리잔류염소)
CI Free-UDV-HR(유리잔류염소)
CI Total-UDV-LR(총 잔류염소)
CI Total-UDV-HR(총 잔류염소)
Chlor Diox(염화물)
Chloride-Testab(염화물)
Chromium(크롬)
Chromium-Testab(크롬)
Cobalt(코발트)
COD Stand(COD)
COD Low(COD)
COD High(COD)
Color(색도)
Copper BCA-LR(구리)
Copper BCA-HR(구리)
Cu-Cuprizone(구리 Cuprizone)
Copper DDC(구리 DDC)
Cu-Zincon HR(구리 Zincon HR)
Copper-UDV(구리-UDV)
Cyanide(청산가리)
Cyanuric Acid
Cyanuric-UDV
DEHA
DO
Erythorbic Acid(에리쏘빅 Acid)
Fluoride(플루오르화물)
Formaldehyde-L(포름 알데하드)
Formaldehyde-H(포름 알데하드)
Hardness-Testab(경도)
Hydrazine(하이드라진)
H Peroxide-LR(과산화수소)
H Peroxide-HR(과산화수소)
H Peroxide-UDV(과산화수소)
Hydroquinone(하이드로키논)
Iodine(요오드)
Iron Bipyr(철)
Iron-UDV(철)
Iron Phen(철)
Lead(납)
Manganese LR(망간)
Manganese HR(망간)
Mercury (수은)
m-e-ketoxime
Molybdenum-LLR(몰리브덴 LLR)
Molybdenum-LR(몰리브덴 )
Molybdenum-HR(몰리브덴 )
Morpholine
Nickel(니켈)

64
*65
66
*67
68
69
70
71
*72
73
*74
*75
*76
*77
*78
79
80
*81
82
83
84
*85
*86
87
88
*89
*90
91
92
93
94
95
*96
97
*98
*99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125

Nitrate-N LR(질산염)
Nitrate-N HR(질산염)
Nitrate-Testab(질산염)
Nitrite-N LR(아질산염)
Nitrite-N HR(아질산염)
Nitrite-Testab(아질산염)
Oil and Grease(오일, 구리스)
Oxygen(산소)
Ozone LR(오존)
Palladium(팔라듐)
pH CPR(pH)
pH PR(pH)
pH TB(pH)
Phenol(페놀)
Phosphate LR(인) 인산염
Phosphate HR(인) 인산염
Polyacrylate(폴리아크릴레이트)
Potassium(칼륨)
QAC
SDMBT
Selenium(셀레늄)
Silica Lo(실리카)
Silica Hi(실리카)
Silver(은)
Sulfate-LR(황산염)
Sulfate-HR(황산염)
Sulfide-LR(황화물)
Sulfide-HR(황화물)
Sulfite-LR(아황화물)
Sulfite-HR(아황화물)
Surfactants(계면활성제)
Suspended Solid(부유물질SS)
Tannin(타닌)
TMIO
Turbidity(탁도)
Zinc-LR(아연)
Zinc-HR(아연)
User Test 1
User Test 2
User Test 3
User Test 4
User Test 5
User Test 6
User Test 7
User Test 8
User Test 9
User Test 10
User Test 11
User Test 12
User Test 13
User Test 14
User Test 15
User Test 16
User Test 17
User Test 18
User Test 19
User Test 20
User Test 21
User Test 22
User Test 23
User Test 24
User Test 25


주) * 표시는 현재 프로그램되어 등록된 측정항목임.
Item Description
Order Code
SMART® Spectro Spectrophotometer, 120V/60Hz

2000

SMART® Spectro Spectrophotometer, 220V/50Hz

2000-EX2

Carrying Case

2000-CS

Battery Pack with holder (rechargeable)

2000-BP

SMARTLink 2 Software with cable

1912-3 or 1912-CD

*Case Type:
A: 7 x 7 x 10 cm
B: 14.5 x 6.5 x 13 cm
C: 14.5 x 9.5 x 13.5 cm
D: Stand-alone cases. Will not fit into optional field carrying cases.
E: 13 x 7 x 12.5 cm
Calibration Curve Calibration Curve
Fully functional spectrophotometer allows the user to select the optimum wavelength for creating calibration curves. The user calibration software automatically calculates the best straight line fit.

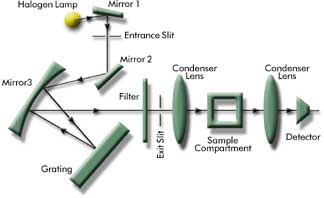

Optical System Design

UNIQUE OPTICAL SYSTEM DESIGN using a 1200 lines/mm grating provides for an excellent range, greater accuracy, and high resolution.

SMART Spectro Spectrophotometer

All Ready to Go!

The SMART Spectro is supplied with 6 sample tubes, 2 sample cell holders, AC adapter, battery charger, instruction manual including test procedures, and quick-start guides.
