 물성측정/전자계측기물리량측정기회전계RM-1500/1501

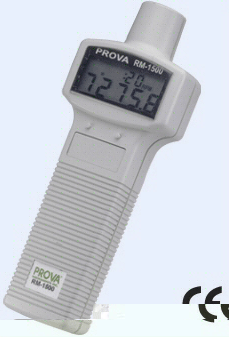

RM-1500/1501



●5 Digits LCD Display
●Max/Min/Hold : True Average
●Light Reflex Measuring
●Auto Range RPM
●Range 10.00 to 99,999 RPM
●RS-232 (RM-1501)
●Measuring Distance 50 to 300mm
●Contact RPM and circumferential velocity measurements in one simple adaptor(RM-1502)
●Event counter with elapsed time
●Combination for non-contact measurements

Speed (Non-contact) :



Range

Resolution

Accuracy

RPM
10.0~6,000.0rpm
0.1rpm
+/-0.01%+/-1digit
6,000.0~9,999.9rpm
0.1rpm
+/-0.02%+/-1digit
10,000~12,000rpm
1rpm
+/-0.02%+/-1digit
12,000~30,000rpm
1rpm
+/-0.05%+/-1digit
Over 30,000rpm
1rpm
+/-0.1%+/-1digit

rps(HZ)

0.200-2000.0

0.001/0.01/0.1

±0.04%±2 dgts

   RPM (contact) :



Range

Resolution

Accuracy

RPM/
(/symoblizes "Contact")
10.0~6,000.0rpm
0.1rpm
+/-0.01%+/-1digit
6,000.0~9,999.9rpm
0.1rpm
+/-0.02%+/-1digit
10,000~12,000rpm
1rpm
+/-0.02%+/-1digit
12,000~30,000rpm
1rpm
+/-0.05%+/-1digit
Over 30,000rpm
1rpm
+/-0.1%+/-1digit

m/min

1.000-2999.9

0.001/0.01/0.1

±0.04%±2 dgts

ft/min

3.000-10000

0.001/0.01/0.1

±0.04%±2 dgts

yard/min

1.000-3000

0.001/0.01/0.1

±0.04%±2 dgts

   Event contact :

Range

 Max.Input Frequency

0-99999

 10KHz. with 5% duty cycle



  • External TTL Input : High > 4.5V (RM 1501)
  • Display : 5 digits 99999 counts
  • Sampling Rate : 0.7 second ( >60rpm)
                               > 1 second (10 to 60 rpm)
  • Measuring Distance : 50 to 300 mm
  • Time Base : 4.0MHz Quartz Crystal
  • Range Selection : Automatic
  • Battery : Four 1.5V batteries (AA, UM-3)
  • Power Consumption : 1.5mA (Idle)
                                        27mA (Non-contact Measurement)
                                        34mA (Contact Measurement)
  • Auto-Power-Off : 30 minutes
  • Operating Temp : 0 to 50℃(32 to 122℉)
  • Size : 172 mm × 63 mm × 36 mm
  • Weight : 190g(including battery)
  • Accessories : Carrying Case × 1, Reflective tape × 1, Instruction Manual × 1,
                            Software & RS-232 Cable (RM-1501)
  • Optional Accessory : Contact Adaptor (RM-1502)
