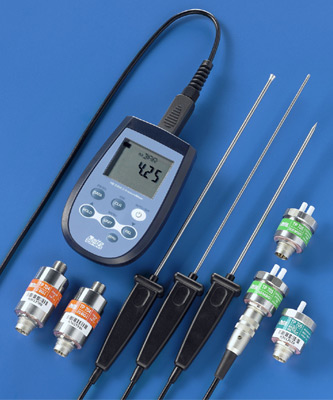

HD2304.0

 MODEL

HD2304.0

Pt100
측정범위

-200~+650℃
(센서선택에 따라 차이가 있습니다.)

 전원

 31.5V 건전지 알카라인 밧데리 사용시200시간

 측정주위온도

 -5~50℃

 분해능

 0.1℃

 보관온도

 -25~65℃

 정도

 ±0.1℃

 작동상대습도

 0~90%RH

측정nuit

℃-°F-Pa-hPa-mbar-bar-atm

 mmHg-mmHO-kgf/cm-PSI-inchHg

 크기 및 중량

 140×88×38mm,160g

압력 probe

 fullscale
pressure

Maximum
overpres
-sure

Resolution

 ORDER CODES

 Accuracy From20 to25℃
(%FSO)

Working

temperature

Connection

Differental pressure

Relative poressure
(compared
to atmosphere)

Absolute pressure

 NON insulated
membrane

 Insulated membrane

 Insulated membrane

10.0mbar

20.0 mbar

0.01 mbar

TP705-10MBD

0.50

0...60℃

 Tube￠5mm

20.0mbar

40.0mbar

0.01 mbar

TP705-20MBD

0.50

0...60℃

Tube￠5mm

50.0mbar

100 mbar

0.01 mbar

TP705-50MBD

0.50

0...60℃

Tube￠5mm

100 mbar

200 mbar

0.1mbar

TP705-100MBD

0.25

0...60℃

Tube￠5mm

200 mbar

400 mbar

0.1mbar

TP705-200MBD

0.25

0...60℃

Tube￠5mm

TP704-200MBGI

0.25

0...80℃

¼BSP

500 mbar

1000 mbar

0.1mbar

TP705-500MBD

0.25

0...60℃

Tube￠5mm

TP704-500MBGI

0.25

0...80℃

¼BSP

1.00bar

2.00bar

1mbar

TP705-1BD

TP705BARO

0.25

0...60℃

Tube￠5mm

TP705-1BGI

0.25

0...80℃

¼BSP

2.00bar

4.00bar

1mbar

TP705-2BD

0.25

0...60℃

Tube￠5mm

TP704-2BGI

TP704-2BAI

0.40

0...80℃

¼BSP

5.00bar

10.00bar

1mbar

TP704-5BGI

TP704-5BAI

0.40

0...80℃

¼BSP

10.0bar

20.0bar

0.01bar

TP704-10BGI

TP704-10BAI

0.40

0...80℃

¼BSP

20.0bar

40.0bar

0.01bar

TP704-20BGI

TP704-20BAI

0.40

0...80℃

¼BSP

50.0bar

100.0bar

0.01bar

TP704-50BGI

TP704-50BAI

0.40

0...80℃

¼BSP

100 bar

200bar

0.1bar

TP704-100BAI

0.40

0...80℃

¼BSP

200bar

400bar

0.1bar

TP704-200BAI

 0.40

 0...80℃

 ¼BSP

500bar

750bar

0.1bar

TP704-500BAI

 0.40

 0...80℃

 ¼BSP
