MODEL

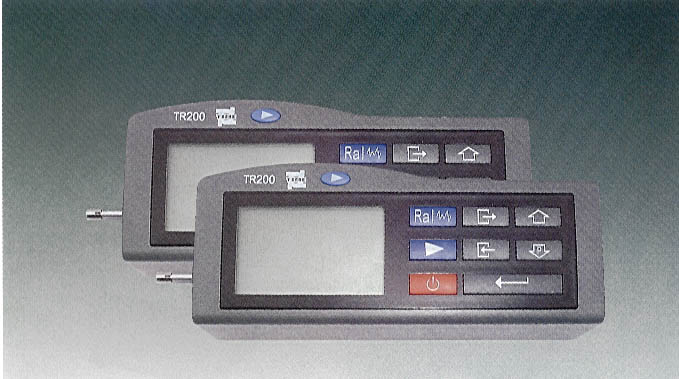

                                TR 200

거칠기 매개변수

Ra, Rz, Ry, Rq, Rt, Rp,12max, Rm, R3z,S,Sm,Sk,Tp

평가 Profiles

Primary Profile(p) Roughness Profile(R),To,Curve(Materical ratio,Mr)

Profiles 기록배율

Vv:200x~2,000xVh:20x 50x 200x

Standard

Conform ISO/DIN/JIS/ANSI

측  정  방  식

Merical ㎛,Imperical M inch

측  정  정  도

0.001㎛/0.04u inch

Display

LCD 128 X64dot, 50X30mm

출        력

RS-232C 외부 printer TA220 또는 PC

범        위

Ra,Rq:0.01~40㎛
Rz, Ry, Rp,R+, R3z:0.02~160㎛
Sm,S:2~4000㎛, Tp:1~100%(%Ry)

Cut-off length

0.25mm/0.8mm/2.5mm

Evalamation length Ln

1~5 cut off

Tracing length Lt

(1~5 cut off)+2 cut off

Digital filter

Rc.Pc-Rc,Gaussian,D-P

내       경

6.0mm,깊이 15mm(TS100)

전      원

Li-ion 충전용 1000mah

측  정  온  도

5~40℃

치수.무게

141mmX56mmX48mm, 약 440g
