●Chamber Dimension (W x D x H) : 400×400×400------기타 사양도 주문제작
●Chamber System Type : 2 - Zone Type
●Temp Controller : Program Controller
●Recorder : SR-1000, YOKOGAWA
●Temp Range:High Temp Chamber : Min  50℃~ Max  150℃------기타 사양도 주문제작
                      LOw Temp Chamber : Min -10℃~ Max -50℃------기타 사양도 주문제작
●Accuracy : ±0.1℃
●Heating Time : RT ~ +150℃, 40Min
●Cooling Time : RT ~ -50℃, 40Min
●Material : Interior : SUS304 Polishing Plate
                 Exterior : SS41 Steel Plate Color Powder Coating
●Safety Devices
             Refrigerator Over Load Relay
             Over Heat Protection Controller
             EOCR
             Short Circuit Breaker
             Protection Safety Fuse
             Alarm, Buzzer

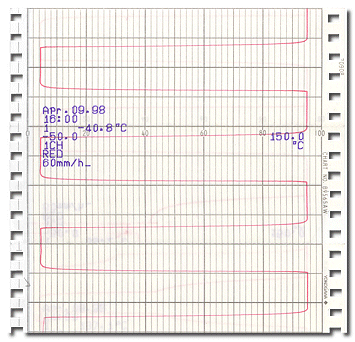

Recorder graph
