 흡차음
분석기 관내법

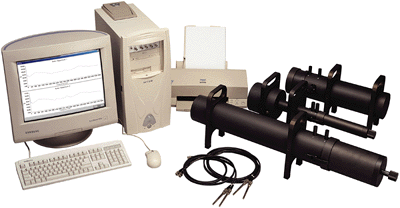

분석기(Acoustic Duct )
|
|
|
|
Specifications for Acoustic Duct
|
|
Computer |
|
Processor |
900 MHz or
higher |
|
Co-processor |
Compulsory |
|
RAM |
128MB or
higher |
|
VGA
card |
32M or
higher |
|
Operating
system |
Windows 98 or
NT |
|
Printer |
HP
deskjet |
|
Unit for
display |
19" color
monitor |
|
Hard
disk |
20GB (highly speed accesstime) |
|
|
|
|
|
|
Hardware System for
Measurement
|
Frequency
range |
Name of
duct |
Dia(mm) |
Length(mm) |
|
Measuring at low
frequency range [100Hz ~ 1600Hz] |
Signal generating
1EA |
102.5 |
640 |
|
Fixing insulation material
2EA |
108 |
20, 30, 50,
100 |
|
Calibrating
1EA |
102.5 |
400 |
|
Fixing absorption material
2EA |
102.5 |
50, 100 |
|
Measuring at high
frequency range [500Hz ~
6300Hz]
|
Signal generating
1EA |
30 |
320 |
|
Fixing insulation material
2EA |
35 |
20, 30, 50, 100 |
|
Calibrating
1EA |
30 |
15 |
|
Fixing absorption material
2EA |
30 |
50, 100 |
|
|
Power
supply |
Signal output CH
1EA
|
|
Signal input CH
4EA |
|
DC coupling 12V &
0.1A |
|
Amplifier |
Amplification of current 20dB
& 40dB |
|
Diameter |
1/4 [inch] |
|
Frequency
range |
20Hz - 15kHz : ±3dB
100Hz - 10kHz
: ±1dB |
|
Sensitivity |
50mV/Pa ± 5% |
|
Max
SPL |
124dB |
|
Temperature
range |
-10 ~ 50 °C |
|
Output socket
|
BNC jack |
|
Noise |
lin (20Hz ~ 20kHz) < 100㎶
, A -
weighted < 30㎶ |
|
Sampling
rate |
300k / total & 75k /
Channel |
|
Resolution |
16bit |
|
Gain
control |
Control by Programming
(1/10/100/1000) |
|
Signal input
type |
Signal ended (Must be installed on
earth) |
|
A/D &
D/A |
16 Channel & 2
Channel |
|
Calibration |
Self -
Calibration |
|
Testing sample for
calibraton |
Low frequency & High
frequency |
|
Dummy
microphones |
4EA |
|
BNC calble
|
(2.5m 2set & 1.5m
1set) |
|
Signal
generator |
sine wave, swept sine wave,
white-noise, pink-noise...etc |
|
Speaker
2ea |
For low frequency & high frequency
|
|
Environmental
System |
measuring system of temperature &
humidity |
|
System for cutting of
material |
Main system & cutting
blade |
Software for
Measurement
|
FFT
module |
Time data => Freq
data |
|
FRF
module |
Data for
calibration |
|
Auto-spectrum |
Averaged freq
data |
|
Cross-spectrum |
Data included with amplitude &
phase |
|
Frequency response
function |
Data for
calibration |
|
Input data display
module |
|
Auto-spectrum |
2 channel & 4
channel |
|
Cross-spectrum |
Real &
imaginary |
|
Result data display
module |
|
Absorption
ratio |
0.0 ∼ 1.0 (default range) contorolled
by user |
|
Transmission
loss |
0dB ∼ 60dB (default range) contorolled
by user |
|
Normalized
impedance |
Real &
imaginary |
|
Frequency response
function |
Amplitude &
phase |
|
Indexed of performance
of material |
Absorption
coefficient |
|
Calibration
module |
Axis display
module |
|
Absorption
coefficient |
1/1, 1/3.....1/n Octave
band |
|
Transmission
loss |
Narrow band |
|
Normalized
impedance |
Linear scale |
|
Reflection
coefficient |
Log scale |
|
|
|
