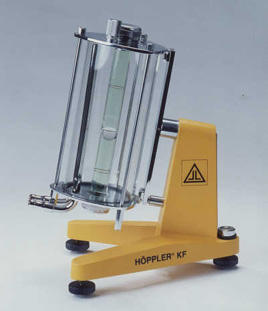

KF3.2  |
|
|
|
●60여년전 세계 최초로 상품화한 제품이며 낮은 점도의 투명한 Newtonian 유체와
기체를 측정가능
●독일 DIN53015과 ISO12058규격에 따름.
|
|
|
|
● 화학공업 : 액상폴리머, 용매, 잉크 등
●제약공업 : 원료, 글리세린
●
광유공업 : 오일, 액화탄화수소
● 대 학 교 : 교육기자재 |
|
|
|
|
| Viscosity range
|
0.5 mPa·s to 7*104
mPa·s |
| for running time of the ball less than 300 s
|
> 7*104 mPa·s |
| with glass ball for gases |
< 0.5
mPa·s |
| Accuracy of measurements |
0.5 to 2% (dependent on ball
used) |
| Material of balls |
balls 1-2 : borosilicae glass |
| balls 3-4 : Ni-iron |
| balls 5-6 : steel |
| Diameter of balls (DIN 53015) |
11.00 to 15.81 mm |
| Diameter of special ball |
15.91 mm |
| Diameter of measuring tube (DIN
53015) |
15.95 mm |
| Running times of balls |
30 to 450 s |
| Length of measuring distance |
100 mm (50 mm) in both running
directions |
| Working angle |
according to DIN (10%
vertical) |
| Extended working angles |
70°, 60°, 50° towards level |
| Temperature working angles |
-60°C to + 150°C |
| Filling volume |
40 ml |
| Dimensions (width, height, length) |
180 x 220 x 330 mm |
| Weight |
30 N (3,1 kg) |
|
