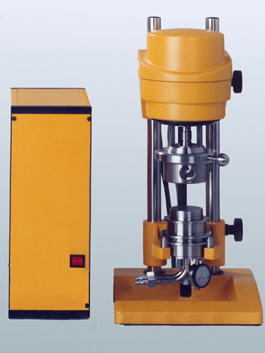

RN4  |
|
|
|
|
●전단응력과 전단력이 범위가 넓다
●한대의 장비로 모든 물질을 측정가능
●CR, CS, OScillation
test
●제조사 : Rheotest
●Type of Measuremnt :
-
Controlled Shear Rate(CR-Tests)
- Controlled Shift
Stress(CS-Tests)
- Oscillation Tests | |
|
|
| Specification |
Viscosity(mPa·s) |
Shear rate
(1/s) |
Shear
stress(Pa) |
| Cone K1 |
1 ... 6,5 * 106 |
2 ... 2 * 104 |
7,8 ... 12500 |
| Cone K2 |
20 ... 1,75 * 108 |
2 ... 2 * 104 |
22 ... 35500 |
| Cone K3 |
2 ... 2 * 107 |
0,6 ... 6000 |
7,8 ... 12500 |
| Cone K4 |
60 ... 6 * 108 |
0,6 ... 6000 |
22 ... 35500 |
| Cone K5 |
10 ... 1 * 108 |
0,12 ... 1200 |
7,8 ... 12500 |
| Cone K6 |
300 ... 3 * 109 |
0,12 ... 1200 |
22 ... 35500 |
Rotor S1 for
measuring vessel G1 |
1 ... 1 * 107 |
0,13 ... 1300 |
0,8 ... 13000 |
Rotor S2 for
measuring vessel G1,M |
10 ... 1 * 108 |
0,13 ... 1300 |
8 ... 13000 |
Rotor H1 for
measuring vessel
G1
|
1 ... 5 * 106 |
0,2 ... 2000 |
0,6 ... 1000 |
Rotor H2 for
measuring vessel G1 |
5 ... 5 * 107 |
0,04 ... 400 |
1,25 ... 2000 |
Rotor HS for
measuring vessel G1 |
0,5 ... 2 * 106 |
0,67 ... 6700 |
0,8 ... 1300 |
Rotor H3 for
measuring vessel G2, M1 |
10 ... 1 * 108 |
0,1 ... 1000 |
6 ... 100000 |
Rotor H4 for
measuring vessel G2,
M1 |
100 ... 1 * 108 |
0,04 ... 400 |
25 ... 40000 |
|
Measuring vessel G1 for rotor S1, H1, H2,
HS |
| Measuring vessel G2 for rotor S2, H3,
H4 |
| Measuring vessel M1 for
rotor S2, H3, H4 (with highest precision of temperature
control) |
| Temperature control vessel G with Pt 100
for measuring vessel G |
| Temperature control vessel
M with Pt 100 for measuring vessel M |
| Special measuring system chocolate with temperature
control jacket including rotor S1 |
| Customer specific measuring systems on
request |
| Temperature control instruments, PC and accessories
on request |
|
