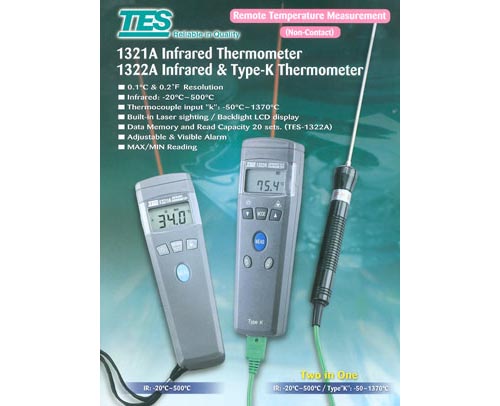

TES-1321A,
TES-1322A  |
|
|
●℃ / ℉ Selectable
●MAX/MIN Reading. (TES-1321)
●Back-light LCD display
●Emissivity adjustable. (TES-1322)
●Laser targeting.
●Audible and visible alarm. (TES-1322)
●Auto-power off.
●Thermocouple Input K(TES-1322)
●Auto-Hold function | |
|
 |
|
Function ＼ Model |
TES-1321 |
TES-1322 |
|
Resolution |
1℃/1℉ |
|
Accuracy |
±3%reading or ±3℃ or 6℉ |
|
Spectral Response |
6 ~ 14㎛ |
|
Field of View |
8:1 optics ratio with a 1" min target |
|
Auto power off |
approx. 15 sec |
|
Sighting |
Laser marker < 1mW |
|
Measurement Range |
-20℃ ~ 400℃(-4℉ ~ 752℉) |
-20℃ ~ 500℃(-4℉ ~ 932℉) |
|
Emissivity |
0.95(Fixed) |
0.1 ~ 1.0 |
|
Measurement Rate |
2.5 times per second |
1 times per second |
|
Battery life |
100 hours |
50 hours |
K-TYPE THERMOMETER SPECIFICATIONS(TES-1322) :
* Measurement Range:
-50℃~1333℃(-58℉~1999℉)
* Resolution : 0.1℃ /
1℃, 0.1℉ / 1℉
|
Function |
Resolution |
Range |
Accuracy |
|
℃ |
0.1℃ |
-50℃ ~ 0℃ |
±(0.2%rdg + 1.0℃) |
|
0℃ ~ 200℃ |
±(0.1%rdg + 0.8℃) |
|
1℃ |
200℃ ~ 1333℃ |
±(0.2%rdg + 2℃) |
|
℉ |
0.1℉ |
-58℉ ~ 32℉ |
±(0.2%rdg + 2℉) |
|
32℉ ~ 200℉ |
±(0.1%rdg + 1.6℉) |
|
1℉ |
200℉ ~ 1999℉ |
±(0.2%rdg + 3℉) | | |
